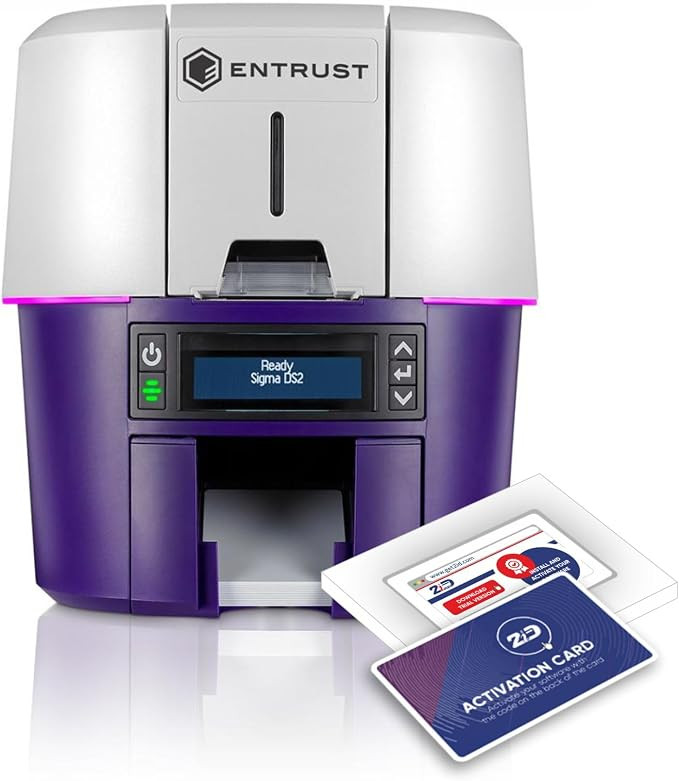

The Entrust Sigma DS2 is built for organizations that issue cards regularly and need them to do more than look good. It prints single-sided or dual-sided cards at up to 225 cards per hour, connects over USB or Ethernet out of the box, and can be ordered with an inline lamination module when badges need to survive years of daily use.
Because the DS2 puts artwork on both sides of the card, you can keep photo, name, and logo on the front while moving policy text, emergency contacts, or a barcode to the back — no second pass, no reprinting.
Why Choose the Sigma DS2
- Single or dual-sided printing — up to 225 cards per hour in colour simplex, 140 cards per hour in colour duplex, and 880 cards per hour in monochrome.
- Network-ready as standard — USB and Ethernet are both included, so the printer can be shared across an HR office, security desk, or campus registrar.
- Enterprise-grade security — secure boot firmware authentication, a Trusted Platform Module with TLS certificate, NIST SP 800-52 Rev. 2 compliant network communication, and IEEE 802.1x with RADIUS.
- Optional inline lamination — add the Sigma Card Lamination Module (SLM) to apply a protective or holographic overlay as cards are printed.
- Full encoding range — magnetic stripe, contact, and contactless smart card options let one device print and program a working credential.
- 36-month manufacturer warranty included.
Choose Your Configuration
Select the print configuration and lamination option that matches your card program.
- 525301-001 — Simplex, 125-card input hopper: single-sided issuance for employee badges, student IDs, and visitor passes.
- 525301-005 — Duplex, 125-card input hopper: dual-sided issuance, and the configuration that supports the inline lamination module.
Lamination Options
The Sigma Card Lamination Module attaches inline and applies a durable overlay that extends card life and adds a visual security layer:
- 531048-001 — SLM single-side laminator: protects the printed front of the card.
- 531048-002 — SLM simultaneous dual-side laminator: laminates both sides in one pass for high-security and long-life credentials.
Lamination is worth specifying when cards carry holographic security features, are tapped or swiped daily, or need to last several years without reissue.
Encoding Options
- Magnetic stripe — ISO 7811 three-track, JIS Type II
- Contact smart card — ISO 7816
- Contactless smart card — ISO 14443 A/B, ISO 15693, MIFARE variants, HID Prox, iCLASS, FeliCa
Encoders are configured at time of order. Tell us which access control system you use and we will confirm the right encoder before you buy.
Supplies and Media
The Sigma DS2 uses genuine Entrust prefilled ribbon cassettes, including YMCKT, YMCKT-KT, KTT, ST-KT, and GT-KT options, plus monochrome ribbons rated for roughly 2,500 images. Genuine Entrust supplies protect print quality and keep your warranty intact.
Ahearn & Soper is an authorized Entrust dealer with Canadian service and supply support. Compare the DS2 with the single-sided Sigma DS1, browse our full range of ID card printers and Entrust ribbons and cleaning kits, or contact our team to spec the right configuration, encoder, and lamination package.
